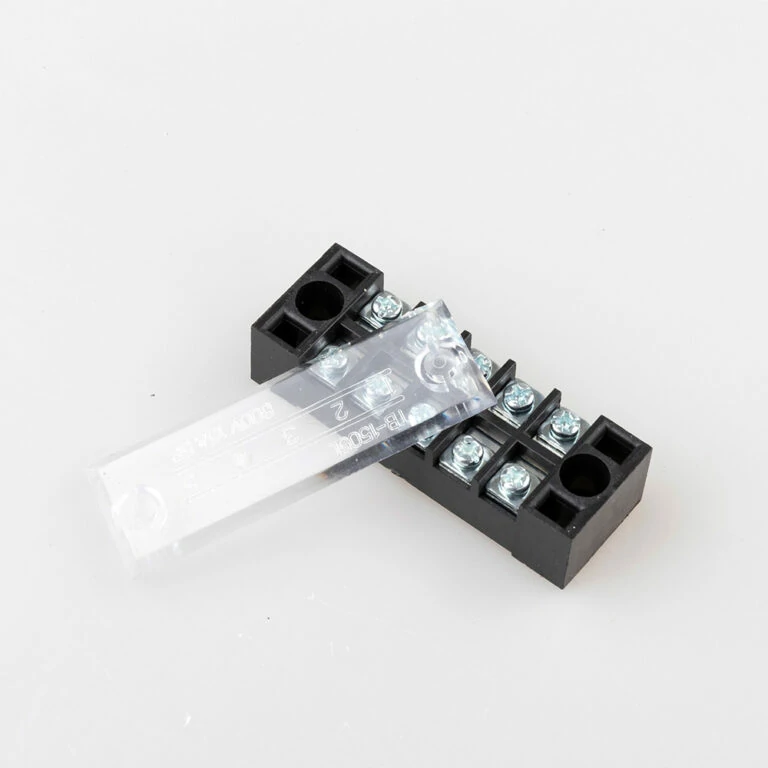

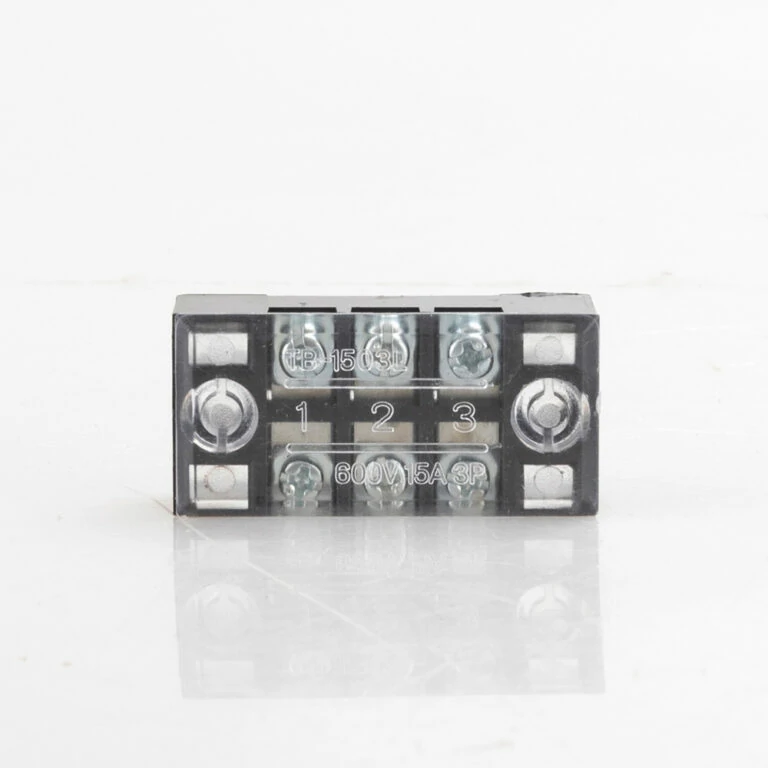

TB-1503 Terminal Block
This TB Series screw-fixed barrier terminal block provides a simple way to connectwires to a single connection point. These blocks allow wires to be screwed togetherand self-isolated without needing to twist, solder, or splice. By this method, wiring canbe adjusted at anytime just as easily as it was the first time.
Place of Origin
Zhejiang,China
Model Number
TB-1503
Color
black
Connection Method
Screw Connection
Rated Current
15A
Rated Voltage
600V
Dimensions
46.5×17.5×22 |
Metal Material
Brass
Wire section(mm²)
0.5-1.5mm²
Product Details
Product Description:
TB series terminal is a plate screw crimping base cosed integral structure, rated voltage 60OV, rated current 15A, 25A, 45A, 60A, 100A, a total of5specifications, can be connected wire cross section 10-1oommz. The product has the advantages of simple structure, convenient installation, and theuse of To-type end, which is more firm and reliable, and can be used for wiring in various electrical devices.
Advantages:
1. High-quality conductive material for products.
2. Its surface is nickel plated that is very resistant to oxidation and corrosion.
3. Flame-retardant shell, with the characteristics of dustproof and impact resistance.
4. Rugged construction protects wire connectors for a long time.
5. Plastic parts are an environmentally friendly material that is easily degraded.
